สกรูปั๊ม Nova rotor ,ปั๊มดูดตะกอน น้ำเสีย

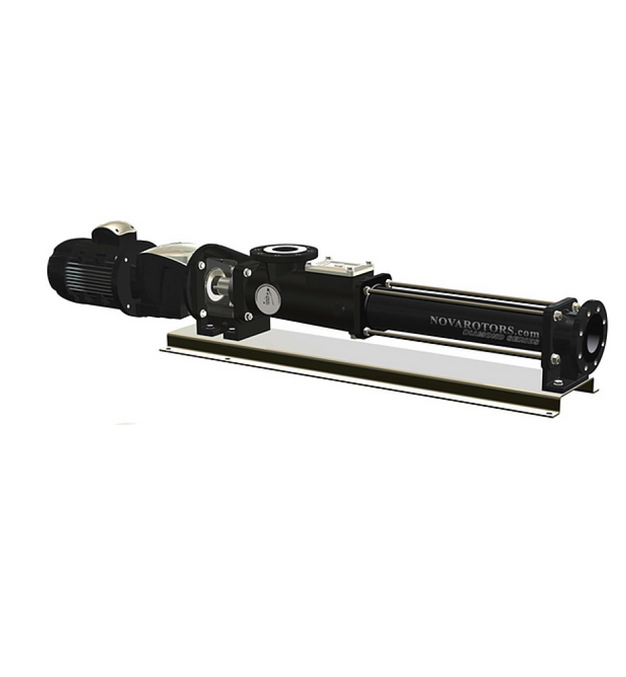

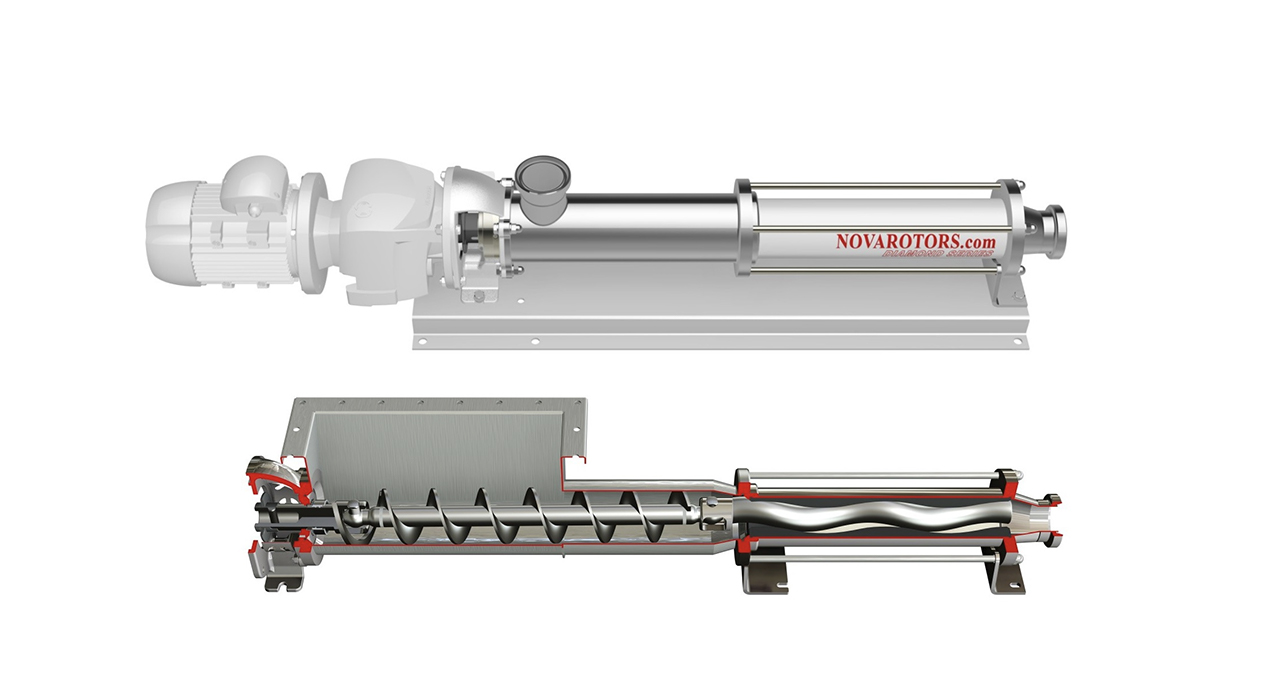

Nova Rotors presents its new range of progressing cavity pumps called the Diamond Series. Completely renewed mechanics to increase the performance with a new aggressive design.
• Reversible flow up to 3 bar as standard: Up to 12 bar with hydraulic balance.
• Pump fixed to motorization with a pin to permit the reversibility.
• Rubber sleeves: designed to increase the long activity, with special geometry. Suitable in case of sharp solids in the medium.
• The universal joint is the same for all the range both for cast iron and SS versions. Only difference is the dimensions and materials.
• The rotating parts are in SS. Can also be produced in other materials.
• Is easy to maintenance but not expensive. Fewer components of smaller dimension under wearing.
SPECIFICATIONS
- Cast iron
Body pump / outlet flange: cast iron G25
– Inspection ports standard in all the sizes cast iron
Available connection:
– Flanges DIN 2501
– Flanges ANSI RF150
– Spherical connections
- Stainless steel
Body pump / outlet flange: S.S. 304 / 316
– CIP on request
Available connections:
– BSP (Gas) /Flanges DIN 2501 /Flanges ANSI RF150 /DIN 11851/ SMS / RJT (BMS) / Macon/Clamp/Other if requested
