Motor Dosing pump SEKO

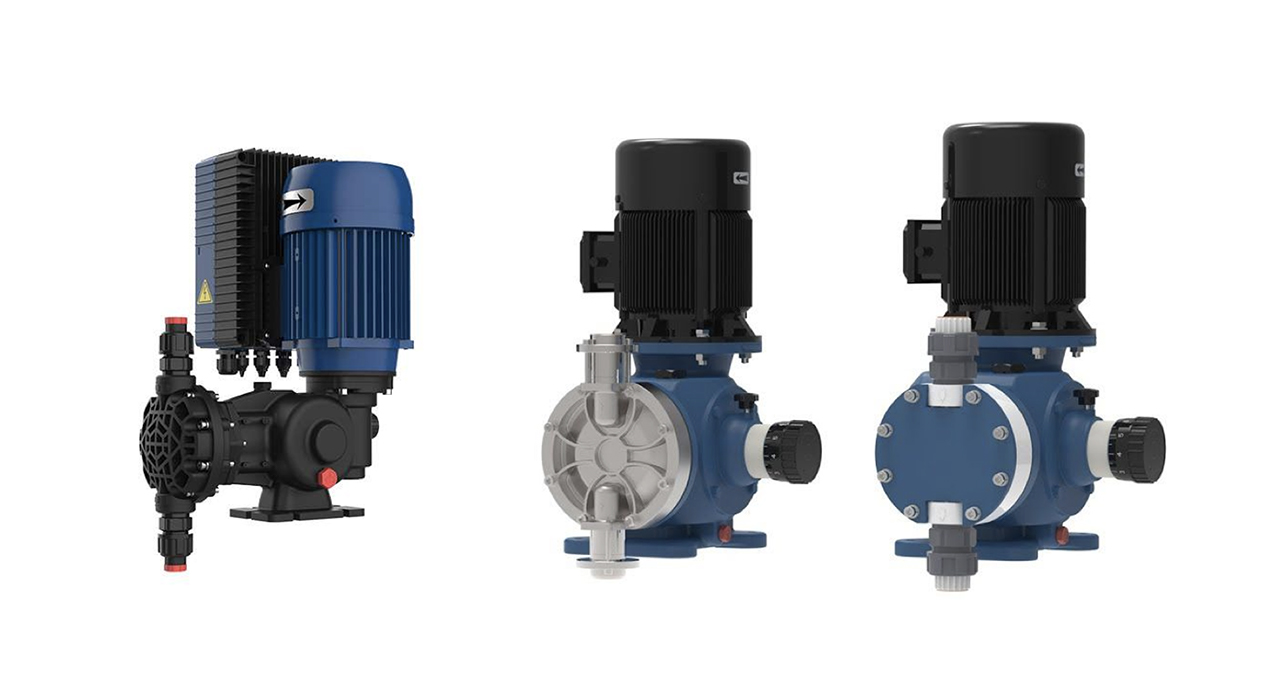

Motor Driven Pumps

  • Offering flow rates as high as 2,065 l/h, pressure ratings up to 200 bar
  • To ensure these pumps operate with maximum efficiency, precision and chemical compatibility in tough water-treatment environments.
  • Motor-driven pumps are adaptable and safe for a comprehensive range of metering processes, including agricultural, food and beverage, potable and wastewater treatment.

Water Treatment Applications

  • Precision and Consistency

From managing the total cost of ownership of a system, whilst guaranteeing accurate measurement of critical water parameters from our Kontrol Series, through to chemically compatible raw materials, chosen for their robustness and durability in our manufacturing process, exemplified by our 5-year guarantee on our diaphragms, to our ATEX certificated pumps

  • Ease of Use and Installation

As a global company, we are attuned to the differing needs of individual markets. This is why, when we design a new product, we ensure that installation is simple and that we use uniform programming language solutions that are intuitive and easy to understand

  • Operational Efficiency

From the affordability of the range of solutions, through to thoughtful design elements such as an adjustable stroke length, single Wetted parts options, stabilised power supply, multiple model outputs in one pump footprint, base or wall mounting, and a common programming language

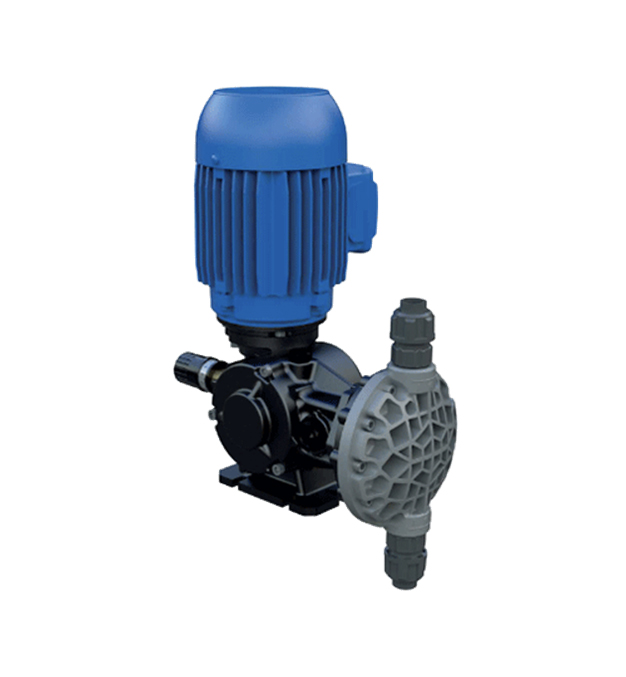

Motor Dosing pump

Features

  • Manual stroke adjustment
  • Zero leakage design
  • Double camshaft mechanism offers added stability (MSV model)

Specification

  • Flow rate: up to 1,200 l/h
  • Pressure: up to 20 bar (290 psi)
  • Stroke rate: up to 116 strokes/minute
  • Wetted part materials: 316L stainless steel, polypropylene, PVC, PTFE and PVDF
  • Power output: 0.18 – 0.75 kW
  • Power supply: 230/400V 50 Hz
  • Ingress protection: IP55

Motor Dosing pump

Accessories to enhance your Spring pump

  • Flow-rate calibration pots
  • Pulsation dampers
  • Safety valves
  • Back pressure valves

Application

  • Waste Water Treatment
  • Cooling Water Treatment
  • Chemicals & Petrochemicals
  • Food & Beverage
  • Automotive
  • Industry
