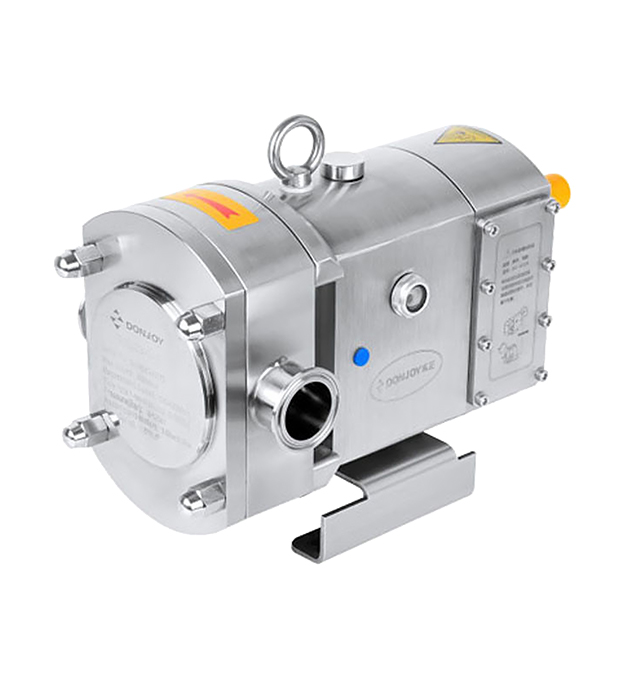

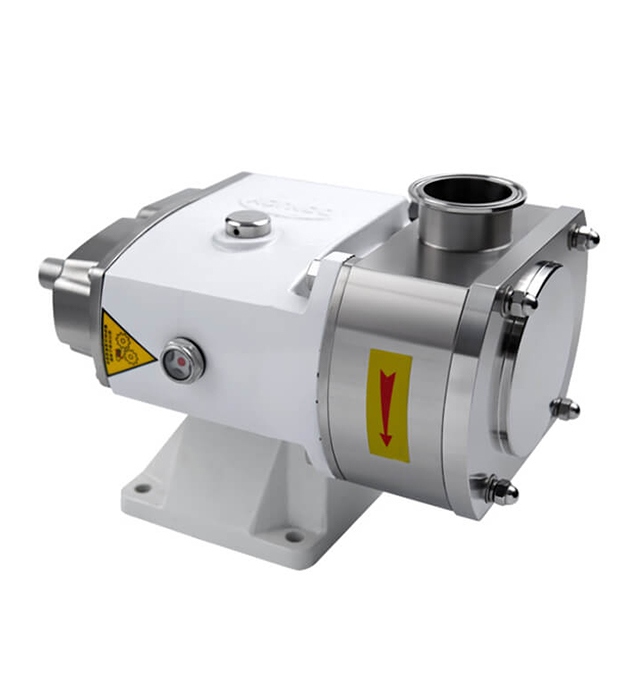

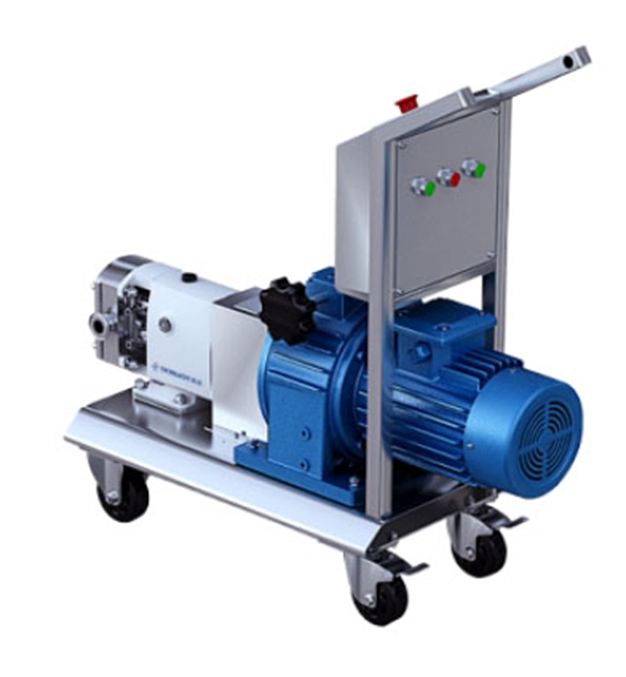

โลปปั้มสำหรับงานอาหาร และยา
Features
- Lobe pump is available in a variety of configurations, TU series is standard configuration .

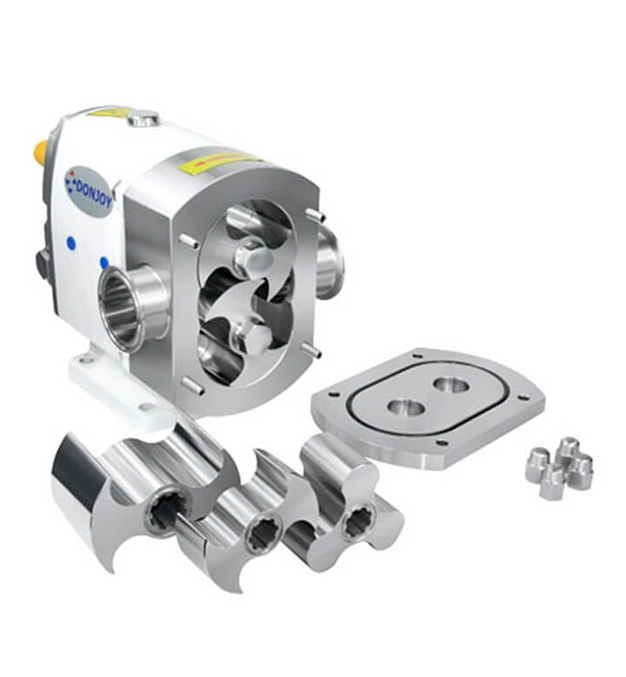

- It is a positive displacement cam rotor pump designed according to the strict sanitary requirements of the US 3A-02-11.
- Suitable for transportation of various highly viscous and low-viscous materials such as food processing, beverages, juices, dairy products, cosmetics, the pharmaceutical industry can be carried out with solid particulate materials,
- Can be applied to CIP and SIP systems.
Specifications
- Maximum flow Max.flow: 90m3 / h (395 GPM)
- Maximum pressure Max.pressure: 15bar(220 Psi)
- Maximum temperature Max.Temperature: 150°C(302°F)
- Maximum speed Max.rev: 750 rpm
