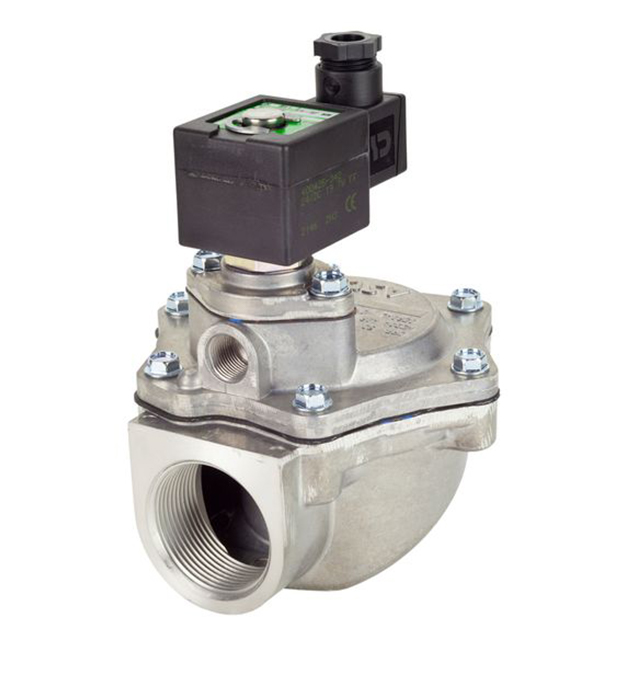

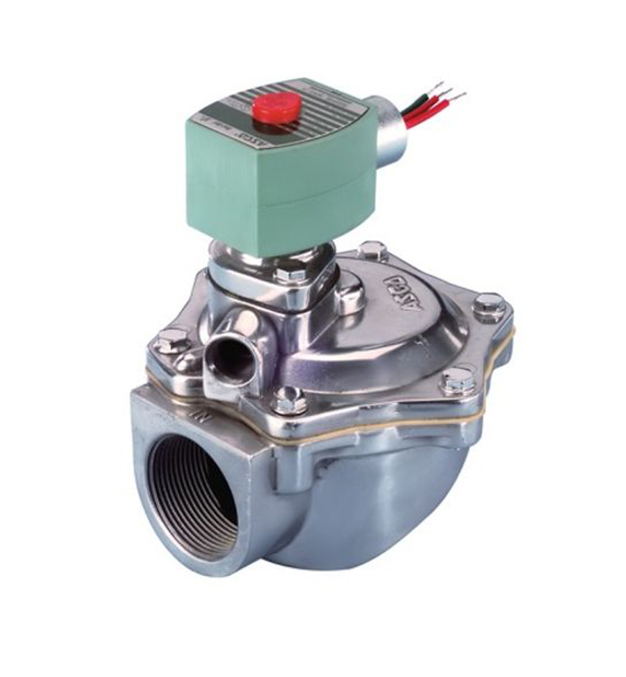

PULSE VALVES
SOLENOID VALVES SERIES 353
FEATURES
• The diaphragm pulse valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and
• Integral compression fittings for fast, easy, secure installation
• Waterproof and explosionproof solenoids for use in potentially explosive atmospheres
• The valves satisfy all relevant EC directives
GENERAL SPECIFICATIONS
Differential pressure (PS) : 0.35 – 8.5 bar [1 bar = 100kPa]
Ambient temperature range : -40 ~ +85°C
MATERIALS IN CONTACT WITH FLUID
- Body valve : Aluminium
- Core tube and Core and plugnut : Stainless steel
- Sealings & dis : NBR
- Diaphragm : TPE (hytrel)
- Connector : Spade plug (cable Ø 6 – 10 mm
